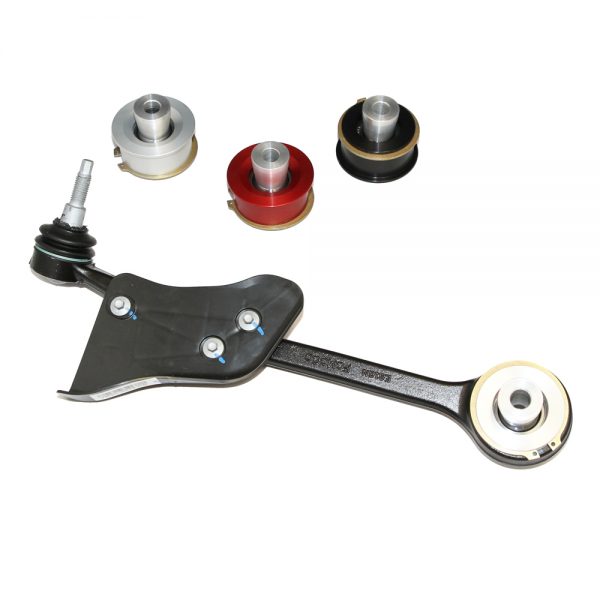

J&M Products has designed a new Spherical Bushing Part 24410 for the 2015-2018 S550 Mustang GT, EcoBoost, GT350 and GT350R. Testing indicates that under track use the factory soft rubber bushings have a frightful degree of deflection. J&Ms Spherical Bushing eliminates the toe and caster alignment altering bushing deviation, and provides smooth predictable suspension gesticulation under the most demanding competitive on track experiences.

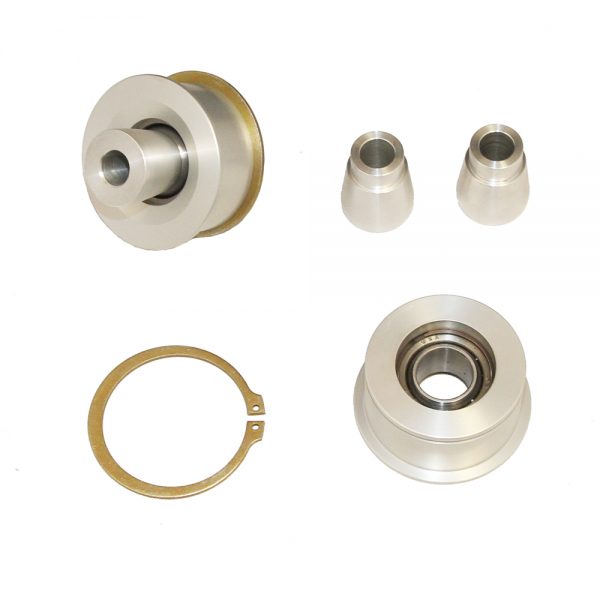

The largest in the industry 1 inch spherical bearings are made from 52100 heat treated steel/hard chrome plated ball; the bearing race is heat treated high strength steel with a load rating of 70,820 psi when most others are rated at 48,000 psi. The bearing liner is not the typical PTFE liner but made from a thin sintered bronze wire net impregnated with PTFE powder giving it great load capacity and longer wear; this is the same liner material that is used in modern ball joints for a maintenance free long life.
Features and Benefits:

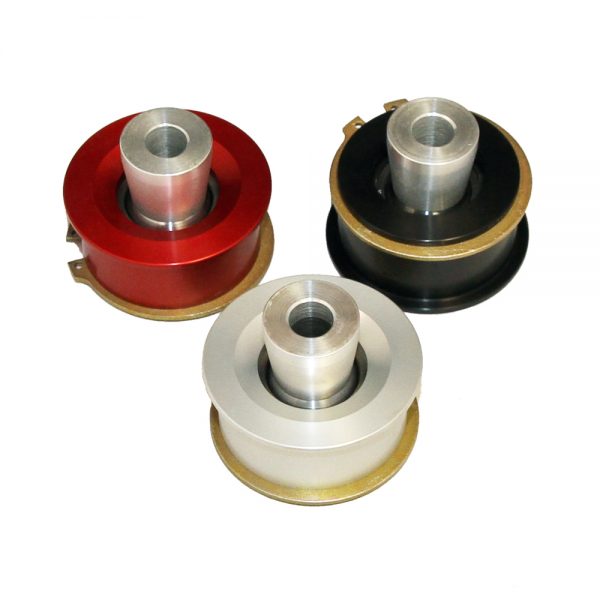

• Finish: black anodize
• A press is required to remove the factory bushing and install the new one
• Provides vastly improved handling characteristics
• Will not flex under load
• Bearing liner is attached with a thin sintered bronze wire net impregnated with PTFE powder, same as modern ball joints.
• 52100 heat treated steel/hard chrome plated ball
• Largest in the industry 1 inch spherical bearing

2015-2018 Mustang S550, GT, EcoBoost, GT350, GT350R Front Control Arm Spherical Caster Bushing Fits: 2015, 2016. 2017, 2018 Mustang GT, EcoBoost, GT350, GT350R
