The FactionFab F-Spec coilover line is our version of a Comfort coilover. These are ideal for those of you looking to achieve a customizable, lowered look while improving the handling and steering response of your vehicle.

These have been engineered using softer spring rates so that you can have an efficient suspension package without compromising the overall ride quality.

Specs:

• Comfort focused spring rates and valving for street performance while not jeopardizing ride quality
• Mild drop range that allows for maximum shock travel
• 32-click adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
• The adjustment allows customers to fine-tune ride quality from soft too stiff in order to meet their road surface and driving environmental needs
• Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections

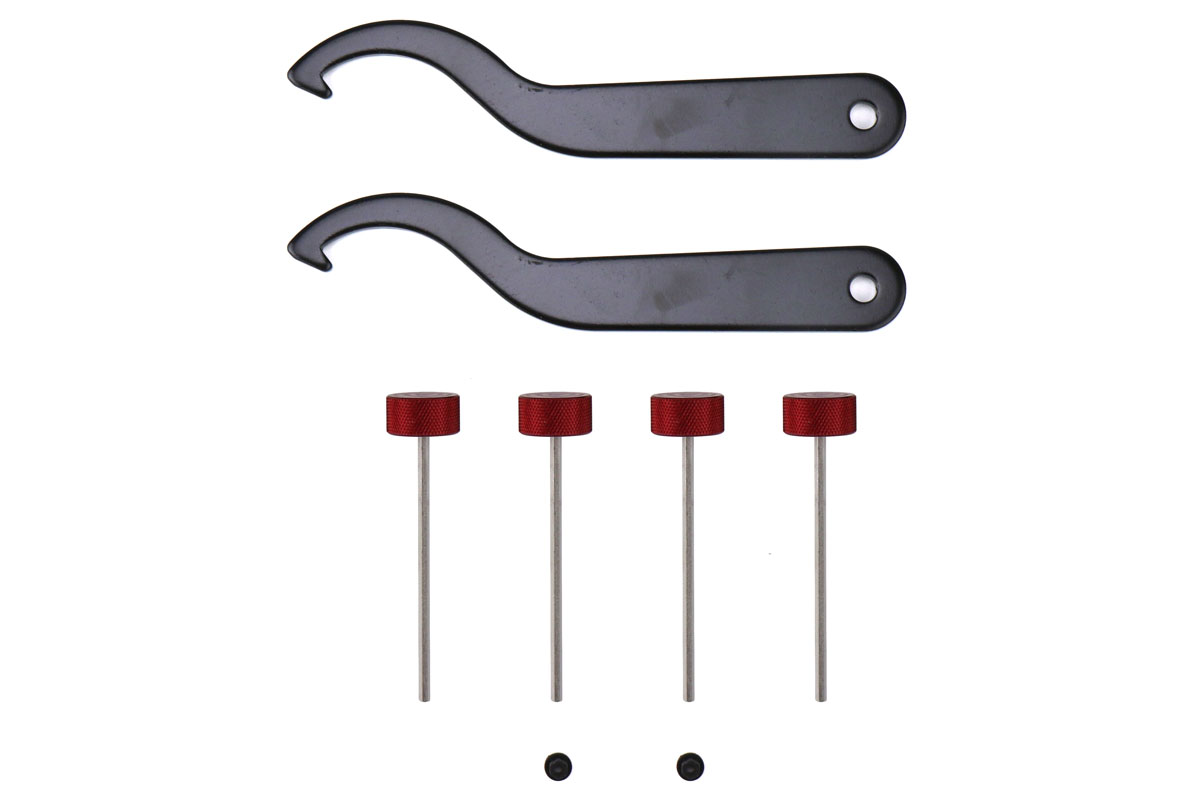

• Includes height adjustment tools
• Includes damping adjustment tools

General:

• Japanese steel tube Construction using SAE1010 STKM13c
• Monotube shock design with high-performance mono-tube shock Construction allowing for better rider control, fluid life, and thermal fluid stability
• Synthetic high-performance oil
• Independent ride-height adjustability separately from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
• Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
• Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
• Robotic welded and electroplated lower shock mounts for consistent fit and finish
• Dust boots and bump stops for shock protection and longevity
• Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise

See install instructions for table with final ride height adjustment range specific to each model and coilover line.

Quick Specs

• WRX / STI 2015-2021
• Adjustable: Yes
• Camber Adjustable: No
• Caster Adjustable: No
• Dampening Adjust Type: 32-Click
• Damper Type: Monotube
• Drop Height Front: 0.3-3.0in
• Drop Height Front Metric: 6-76mm
• Drop Height Rear: 0.4-2.3in
• Drop Height Rear Metric: 10-57mm
• Height Adjustable: Yes
• Independent Height Adjustable: Yes
• Spring Rate Front: 448lbs/in
• Spring Rate Front Metric: 8Kg/mm
• Spring Rate Rear: 392lbs/in
• Spring Rate Rear Metric: 7Kg/mm
• Top Hats Included: Yes
